Industrial Cogeneration

Engineering Consulting Services

Experience Overview

Vista Projects has provided engineering services for several cogeneration projects integrated into oilsands processing facilities. This experience includes two GT-OTSG (gas turbine – once-through steam generator) installations, which feature great flexibility in maintaining steady steam production regardless of the gas turbine loading.

Most cogeneration facilities feature the GT-HRSG (gas turbine – heat recovery steam generator) arrangement, which does not offer the same flexibility of a GT-OTSG arrangement. Vista Projects has experience implementing design strategies for both arrangements.

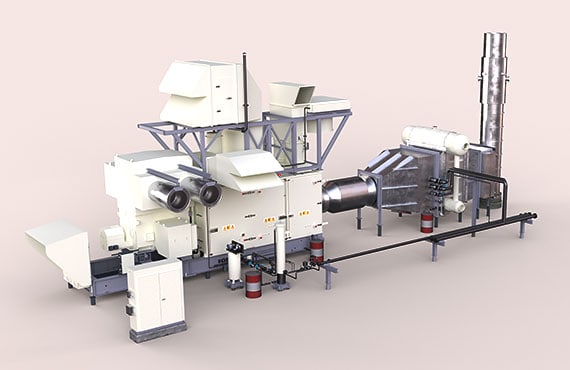

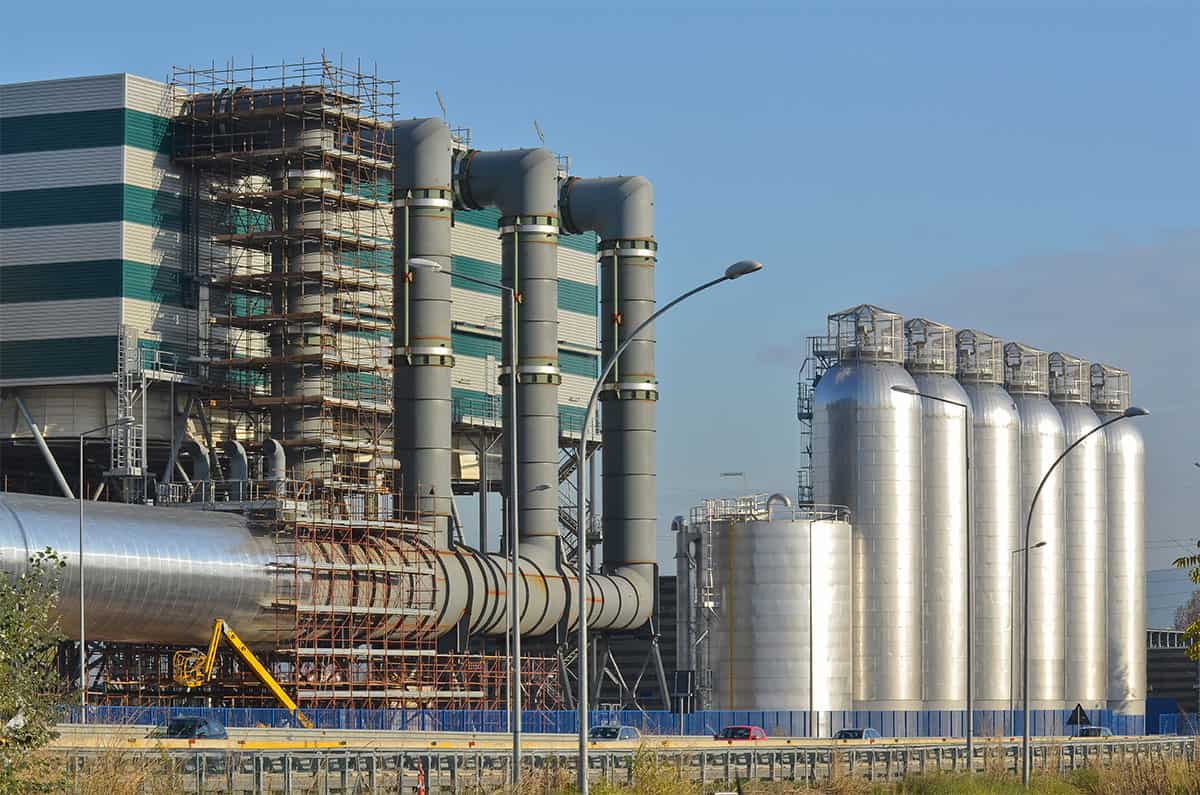

congeneration

Vista Projects also has extensive experience with utilities, tankage, and well pad & pipeline development. Our project history includes long-term brownfield programs and multi-phase greenfield expansion projects.

GT-OTSG

The GT-OTSG arrangement provides the greatest flexibility in maintaining steady steam production, regardless of the gas turbine loading.

The key element in this design strategy is the burner and its ability to fire the OTSG on:

  • fuel gas
  • turbine exhaust/fuel gas
  • a mixture of the two

In cases of lower power demand, an OTSG can maintain high steam production by firing fuel gas to supplement the gas turbine exhaust-fuel gas mix.

With this design strategy, the gas turbine may be shut down and the steam output maintained by firing the OTSG only on fuel gas.

GT-HRSG

Heat recovery steam generators (HRSGs) normally operate on the hot exhaust gas off the gas turbine power generators.

HRSGs can be fitted with supplemental gas firing capability, as known as duct firing. This enables steam generation to continue at higher rates if the gas turbine is slowed down.

However, there is a limit to the amount of duct firing that can be accommodated. And it is not possible to maintain maximum steam output solely on duct firing.

In a facility with many stand-alone steam generators, the need for maximum flexibility in cogeneration steam output is not as critical. This is because the other steam generators can provide additional steam if the GT-HRSG is not able to operate at design rates.

Highlighted Projects

Cogeneration (GTG-HRSG) for Greenfield SAGD

Vista performed the front-end engineering design (FEED) and detailed engineering (DE) for a cogeneration facility. The facility featured gas turbine generators (GTGs) followed by heat recovery steam generators (HRSGs) designed for site power production, as well as the steam generation required to stimulate a thermal reservoir.

Scope Included:

  • Two 50 MW General Electric LM6000PH gas turbines driving 13.8kV two-pole brushless generators
  • Waste heat from the turbine exhaust was used to produce up to 356,000 kg/hr of 10,000 kPag steam in two HRSGs

Brownfield Cogeneration Addition (GTG-OTSG)

Vista performed the front-end engineering design (FEED) and detailed engineering for the addition of a gas turbine to a once-through steam generator (OTSG) at a large-scale SAGD processing facility.

The engineering design allowed for a Solar Taurus 70 gas turbine to be mated to an OTSG producing up to 167,600 kg/hr of 9,600 kPag steam.

Cogeneration Estimate (GT-OTSG)

Class-5 cost estimate for a cogeneration facility including two Solar Mars 100 gas turbines, each followed by a hybrid once-through steam generator (H-OTSG) capable of firing on:

  • fuel gas
  • gas turbine exhaust gas
  • a mixture of both

The design would provide a stable steam generation under a fluctuating gas turbine load.

This was for a cogeneration utility plant located within an in-situ heavy oil facility. Deliverables included a Class 5 estimate for complete engineering and construction.

Greenfield Cogeneration (GTG-OTSG)

Vista performed the front-end engineering design (FEED) of a cogeneration facility featuring gas turbines (GTs) followed by hybrid once-through-steam-generators (H-OTSG) designed for site power production, as well as the steam generation required to stimulate a thermal reservoir.

Scope Included:

  • Three x 11.3 MW Solar Mars 100 turbines or two x 15 MW Solar Titan 130 turbines and OTSGs
  • Each turbine exhausts into an OTSG burner to provide 320 MMBTU/hr of heat and generates 149,000 kg/hr of steam at 9,900 kPag

Related Brochures

Looking for more information? Download one of our related brochures to learn more about Vista Projects’ engineering consulting services.

Project Experience Overview

Industrial Cogeneration

Engineering Capabilities

Vista Projects has a decades-long history of engineering some of the most successful facilities in the Canadian energy sector. We understand the advantages and disadvantages of cogeneration and have extensive experience designing specialized processes to maximize a facility’s thermal and electrical commodity use, through combined heat and power systems.

Vista Projects focuses on helping clients analyze their power needs and engineering fit-for-purpose design solutions. Additionally, Vista Projects has relationships with a variety of power producers that can provide financing, ownership, and operation, depending on the end client’s preference.

Common technologies used in both bottoming cycle or topping cycle combined heat and power systems include:

Gas Turbines

Gas turbines are like internal combustion engines that burn fuel (natural gas or liquid fuels) to generate electricity. The heat generated from the turbine exhaust can be used to generate high-pressure steam, which is useful in industrial processing facilities.

Steam Turbines

Steam turbines generate power from steam produced in boilers. This power runs generators that produce electricity. They can operate using a large variety of fuels, including natural gas, coal, and biofuels (i.e. wood pellets or another biomass).

Microturbines

Microturbines are small and compact gas turbines. They work as internal combustion engines to produce both heat and electricity on a comparatively smaller scale. Microturbines also utilize different fuels, such as natural gas and liquid fuels (kerosene, gasoline, etc.).

Market Overview

Combined heat and power (CHP), or cogeneration, is the production of electricity and thermal energy from a single fuel or energy source. It pertains to a host of systems that allow for the heat that is otherwise lost or wasted in conventional power generation processes to be recovered and employed as useful energy.

Unlike traditional power generation systems, combined heat and power applications are usually located within facilities, near the consumption point. Cogeneration can help processing facilities operate at higher efficiency rates and reduce losses incurred from generating heat and power separately.

Combined heat and power systems have successful applications across different sectors, including:

  • Industrial: pulp and paper mills, wood pellet production, packaging, agrochemicals, textiles, oil and gas production, refineries, wastewater treatment plants, food processing sites
  • Institutional: hospitals, schools and colleges, military bases, prisons
  • Residential: apartments, condominiums, planned communities, co-ops
  • Commercial: health clubs, hotels, nursing homes, office buildings
