How to Label Panel Components

Labeling panel components boosts safety, simplifies troubleshooting, and ensures compliance in electrical and control systems—making maintenance faster and safer.

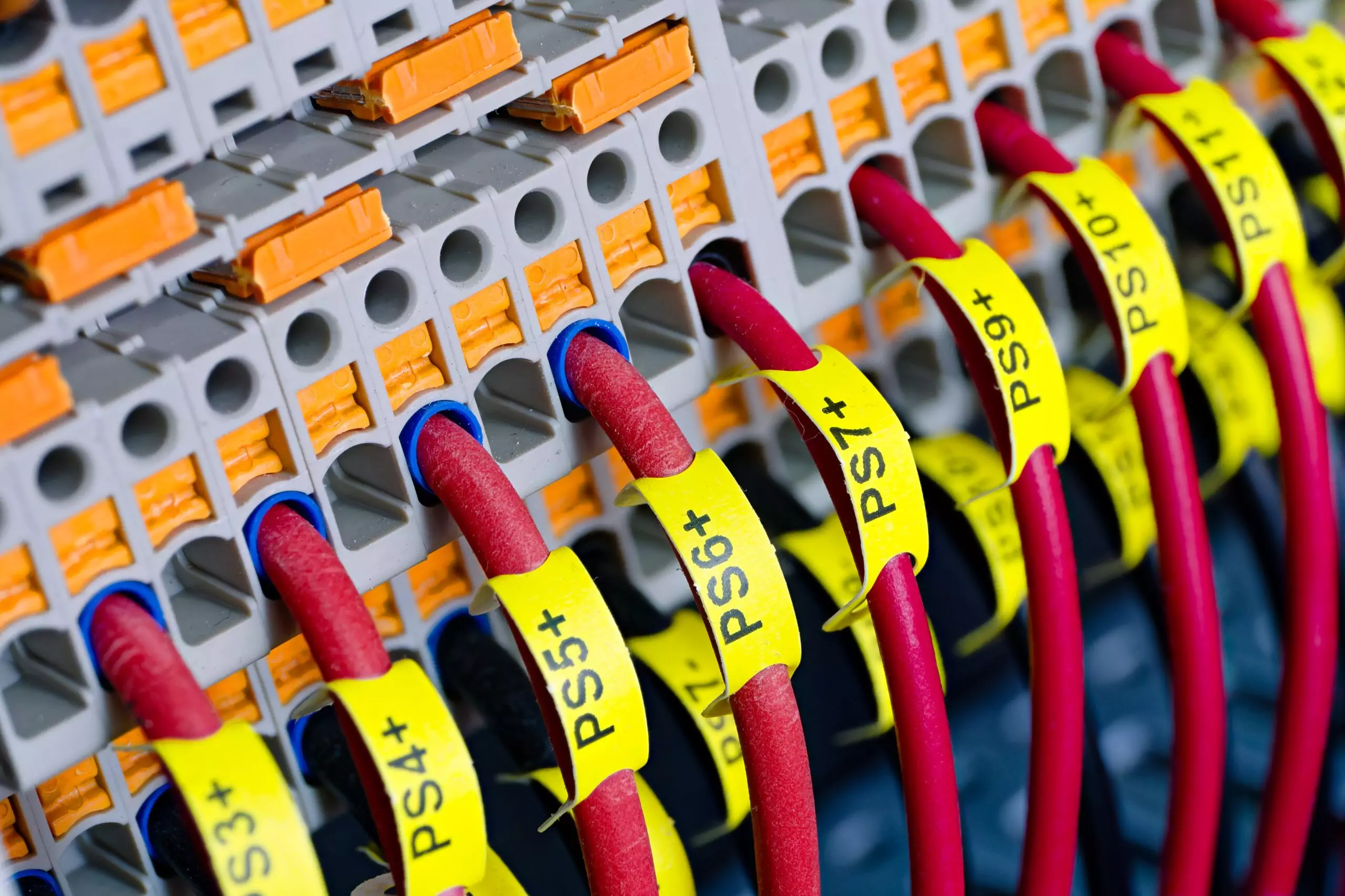

Close-up of labeled red wires connected to terminal blocks in an electrical panel.

Ever wondered why every little component inside a control panel is meticulously labeled? It’s not just for show! Labelling panel components is a game changer in the realms of electrical, electronic, and control system design and maintenance.

It’s all about enhancing safety, boosting efficiency, and simplifying troubleshooting. Imagine trying to navigate a maze without a map; that’s what working on an unlabeled panel feels like. From ensuring the safety of maintenance personnel to saving time during repairs, the benefits of labelling are numerous.

Plus, it keeps you in line with industry standards. So, if you haven’t been labeling your panel components, it’s high time to consider the impact it could have on your operations. Let’s dive into the world of labelling, exploring its significance, the materials needed, and best practices to ensure your panel components are as clear and informative as they should be.

Welcome to the ultimate guide on labelling panel components effectively.

Why Label Panel Components?

Labeling panel components is a crucial practice in electrical, electronic, and control system design and maintenance. The primary goal of labeling is to ensure safety, efficiency, and ease of troubleshooting.

Labelling also supports compliance with industry standards and regulations, which often require the clear identification of electrical components. In essence, labelling panel components is a foundational element in the safe, efficient, and effective management of electrical and control systems, embodying a blend of safety, operational efficiency, and regulatory compliance.

Safety

The primary goal of labelling panel components is to enhance safety. Properly labelled components mitigate the risk of accidents and injuries by providing clear and immediate identification of electrical circuits, their capabilities, and associated hazards. This clarity is crucial not only for those familiar with the system but also for maintenance personnel or emergency responders who need to understand the system’s layout swiftly and accurately.

By reducing the potential for errors and confusion, labeling directly contributes to creating a safer work environment.

Efficiency

Labeling panel components significantly boosts efficiency in various operations involving electrical, electronic, and control systems. With clearly marked components, technicians can quickly identify and access the necessary parts of the system without the need for extensive documentation or guidance. This rapid identification speeds up processes such as system analysis, repairs, and upgrades, facilitating smoother and more efficient workflow.

This efficiency not only saves time but also reduces the likelihood of mistakes that can occur when trying to decipher an unlabeled or poorly labeled system.

Maintenance

When it comes to maintenance, the benefits of labeling panel components cannot be overstated. Clear and accurate labels are invaluable for routine checks, troubleshooting, and resolving system failures. They allow maintenance personnel to easily navigate complex systems, identify problem areas, and apply fixes with confidence.

Furthermore, labeling supports preventive maintenance by making it easier to monitor system components and address potential issues before they escalate into serious problems. In essence, labeling serves as a critical tool in maintaining system health, ensuring longevity, and minimising downtime due to repairs or malfunctions.

Materials Needed for Labelling

To label panel components effectively, certain materials are essential. These materials, when chosen with care, guarantee that labels remain clear, legible, and firmly attached, fulfilling their critical role in system safety, maintenance, and efficiency.

Durable Labels or Stickers

Durable labels or stickers are essential for ensuring that component identification can withstand environmental challenges, such as heat, moisture, and physical wear. These labels are specifically designed to resist deterioration, maintaining their legibility and adherence over extensive periods. Opting for high-durability labels is crucial in industrial settings, where harsh conditions can compromise the integrity of lesser materials.

Waterproof Permanent Markers

For added customisation or detail, waterproof permanent markers are indispensable. These markers deliver fade-resistant, permanent inscriptions that remain visible in various conditions, including exposure to liquids and high humidity environments. Their use guarantees that any handwritten labels or notes on components stay clear and readable, safeguarding against the loss of critical information due to environmental factors.

Labelling Machine (for Bulk Labelling)

In scenarios that require extensive labelling, a labelling machine becomes a valuable asset. Automating the label application process, these machines ensure consistent, accurate placement and secure adhesion of labels across a multitude of components. Using a labelling machine enhances efficiency and uniformity in large-scale projects, where manual labelling would be inefficient or inconsistent.

This tool is key for maintaining high standards of quality and durability in bulk labeling tasks, streamlining operations while ensuring accuracy.

Choosing Labels for Components

Selecting the right labels for panel components is a crucial decision that affects the longevity, visibility, and overall effectiveness of the labelling system. Making informed choices in these areas guarantees that the labels not only serve their immediate identification purpose but also remain functional and legible throughout the lifespan of the component, facilitating maintenance, safety, and efficiency.

Assessing Durability Against Environmental Factors

Assessing durability against environmental factors is pivotal for choosing labels that will endure through extreme conditions. This step involves selecting materials capable of resisting adverse elements such as high temperatures, moisture, and physical abrasion. Ensuring durability is essential for labels to remain legible and intact, thereby maintaining their critical role in safety and maintenance over extended periods.

Ensuring Visibility in Various Lighting Conditions

Ensuring visibility in various lighting conditions is vital for the effective use of labels. Opting for labels that feature high-contrast colours and reflective materials ensures their readability in diverse environments, whether in dimly lit areas, under bright sunlight, or exposed to artificial lighting. High visibility supports swift and accurate identification of components, significantly reducing the likelihood of errors and improving operational efficiency.

Evaluating Adhesive Quality for Long-term Application

Evaluating adhesive quality for long-term application is about choosing labels with adhesives that ensure a durable bond to the component’s surface. The selected adhesive must maintain its integrity against environmental challenges, preventing the label from peeling or deteriorating over time. A strong, reliable adhesive is a cornerstone of a dependable labelling system, essential for maintaining continuity and adhering to safety standards.

Steps to Effectively Label Components

Effectively labeling components involves a series of strategic steps designed to ensure accuracy, durability, and readability of the labels. Each of these steps is integral to establishing a labeling system that enhances the functionality and safety of the panel components.

Identifying All Components for Labelling

Identifying all components for labelling is the first step in the labelling process. It involves meticulously cataloging every component that requires a label, ensuring comprehensive coverage. This thorough identification underpins a systematic and efficient labelling approach, which is crucial for both safety and operational efficiency.

Creating a Clear Labelling Scheme

Creating a clear labelling scheme involves developing a consistent and logical system for naming and numbering components. This scheme should be straightforward, facilitating quick identification and minimising the potential for errors. Establishing a well-conceived labeling scheme is pivotal for effective communication and streamlined maintenance processes.

Preparing the Surface for Labels

Preparing the surface for labels is essential to ensure that labels adhere securely and maintain their integrity over time. This step often involves cleaning the surface to remove any contaminants and selecting an adhesive compatible with the component’s material. Proper preparation of the surface is a critical factor in the long-term durability and visibility of the labels.

Applying Labels According to the Scheme

Applying labels according to the scheme requires precision and adherence to the established guidelines. Each label must be placed according to the pre-defined scheme, ensuring it is positioned for maximum visibility and effectiveness. The meticulous application of labels according to the scheme is vital for the labels to fulfill their intended function successfully.

Verifying Label Accuracy and Readability

Verifying label accuracy and readability is the concluding step in the labeling process. This crucial verification process involves checking each label for correctness and ensuring that it can be easily read from a reasonable distance. This step is essential for ensuring that the labeling system functions as an effective tool for maintenance, safety, and operational management.

Best Practices in Labelling

Adopting best practices in labelling is crucial for maximising the effectiveness and longevity of the labelling system. These practices are foundational to creating a labeling system that is not only efficient and reliable but also supports safety and operational excellence.

Using Standardised Symbols and Abbreviations

Using standardised symbols and abbreviations streamlines communication and enhances safety across the board. This approach ensures that labels are immediately understandable to anyone who interacts with the system, leveraging universally recognised conventions. Such standardisation minimises the risk of errors and misinterpretation, solidifying its role as a crucial aspect of effective labelling.

Implementing Colour-coding for Quick Identification

Implementing colour-coding is a powerful tool for swift and accurate component identification. By assigning distinct colours to various types of components or systems, individuals can easily locate and distinguish them, even in complex configurations. This strategy not only facilitates quick visual recognition but also significantly aids in efficient operations and swift troubleshooting.

Regularly Updating Labels to Reflect Changes

Regularly updating labels to reflect changes within the system is essential for ensuring the continued relevance and accuracy of the labeling. System modifications, expansions, and upgrades necessitate a corresponding update in labels to accurately reflect the current configuration. This practice is vital for preserving the operational integrity and safety of the system, making it a critical component of label management.

Common Mistakes in Labelling

Avoiding common mistakes in labeling is crucial for ensuring the effectiveness of a labeling system. Recognising and correcting these mistakes is essential for maintaining a high-quality, reliable labelling system that supports operational integrity and safety.

Opting for Non-durable Label Materials

Choosing non-durable label materials compromises the longevity and visibility of labels, leading to fading, peeling, and damage under environmental stress. This mistake can significantly hinder the identification process, affecting safety and efficiency. Selecting materials designed for durability is essential for a reliable labeling system.

Overcrowding Labels, Reducing Legibility

Overcrowding labels diminishes their legibility, making it difficult to quickly and accurately identify components. This common error can cause confusion and increase the risk of errors in maintenance and operation. Ensuring labels are clearly spaced and readable is crucial for effective communication.

Ignoring Industry Standards and Regulations

Ignoring industry standards and regulations in the labeling process can lead to non-compliance and safety issues. Adherence to these standards ensures that labeling practices meet the required safety and operational guidelines. Compliance is not only a legal obligation but also a best practice for maintaining system integrity and safety.

Ensuring Clear and Effective Labeling Systems

Labeling panel components is more than a simple task; it’s a critical step in enhancing safety, boosting operational efficiency, and facilitating effective troubleshooting. By adhering to best practices, selecting the right materials, and following a systematic approach to labeling, you ensure that each component is clearly identified and accessible for maintenance and repairs. This practice not only simplifies day-to-day operations but also ensures compliance with industry standards, providing long-term value and reducing the risk of errors or accidents.

Vista Projects‘ commitment to engineering excellence extends to every aspect of your projects, including ensuring clear and efficient labeling systems. With our expertise in system integration and industrial engineering, we help you create optimised, compliant, and safe environments for your operations​.

Ready to streamline your panel systems? Contact Vista Projects today to learn how our expertise can enhance the safety and efficiency of your electrical systems.
